ISGB型立式防爆管道离心泵

ISGB型立式防爆管道离心泵

产品概述
ISGB型便拆立式管道离心泵是在ISG型泵的基础上开发成功的一种结构新颖，技术先进的产品。该立式泵特别是在整体结构上进行大胆突破设计。采用独立轴承体、泵轴支撑，解决了原来立式泵靠电机轴承支撑的不足之处；采用优秀水力模型的叶轮，消除了原立式泵轴向力大的不足之处；电机采用Y系列标准通用电机，解决原立式泵加长轴电机配套更换难的问题；同时100％的便拆结构，解决了更换大功率水泵的轴承、机械密封、叶轮、泵轴的难题。
该泵与国内同类产品相比，具有运转更平稳、使用寿命长、配套更方便、维护保养更轻松等等，无可代替的优点。在立式泵系列产品中属国内前列，各项技术居国内领先，是替代ISG型立式泵、IS型离心泵、S型双吸泵等常规各种离心泵的最理想产品。

结构特点
1、立式结构，安装调试方便，独特设计的电机和泵体采用联接体联接，同心度高、加工精度高，占地面积大大减少，缩减了泵房建筑投资30％一60％。底脚稳固、结构紧凑、精美的铸造和外观处理赋予立式离心泵新的美感，使产生品焕发艺术的魅力，可以和国外著名厂家立式泵媲美。
2、配用国内著名厂家生产的Y系列标准通用电机，运行平稳、噪音极低。
3、轴承采用国际著名品牌精密轴承，精度高、可靠性好、寿命长。
4、叶轮采用90年代最优秀可自平衡轴向力的水力模型，使得泵轴承和机械密封使用寿命大大延长。
5、电机轴承座内的轴承都配有加油孔和放油孔，对轴承的维护保养十分方便。
6、可拆卸硬性中间联轴器，使泵起动无振动、无噪音，旋转部件设有可靠的安全防护罩，安全性极好。
7、机械密封采用不锈钢、碳化钨、氟橡胶等材料制成，耐高温、高压，运行寿命长，无渗漏，对轴无磨损，保证工作环境整洁。
8、泵盖结构设计独特，只要卸下硬性中间联轴器、泵盖螺母，即可十分轻便取出轴承座。泵盖、泵轴、叶轮等组合件，进行更换机械密封和叶轮，而不必拆卸电机、泵体和管道，维修方便快捷。

工作条件
1、泵系统最高工作压力为1．6MPa，即泵吸入口压力+泵扬程≤1．6MPa(泵扬程工作压力大于1．6MPa时应在订货另行提出，以便在制造时泵的过流部件和联接部件采用铸钢)。
2、输送介质为清水或物理化学性质类似清水的其它液体。(输送介质带有细小颗粒的应在订货时另行说明，以便装配耐磨式机械密封)。
3、环境温度≤40℃，海拔高度≤1000m，相对湿度≤95%。

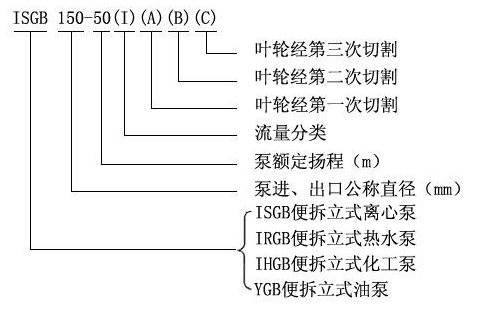

型号意义

性能参数表

型号 流量Q 扬程
H
m		 效率
%		 转速
N
r/min		 电机功率
P
KW		 必需汽蚀余量
NPSHr
m		 重量
W
kg
m3/h l/s
ISGB40-12.5 4.4
6.3
8.3		 1.22
1.75
2.31		 13.2
12.5
11.3		 48
54
53		 2900 0.55 2.3 35
ISGB40-12.5A 3.9
5.6
7.4		 1.08
1.56
2.06		 10.6
10
9		 52 2900 0.37 2.3 35
ISGB40-20 4.4
6.3
8.3		 1.22
1.75
2.31		 21
20
18		 41
46
43		 2900 1.1 2.3 35
ISGB40-20A 3.9
5.6
7.4		 1.08
1.56
2.06		 17.6
16
14.4		 40
45
41		 2900 0.75 2.3 33
ISGB40-32 4.4
6.3
8.3		 1.22
1.75
2.31		 23
32
30		 35
40
40		 2900 2.2 2.3 50
ISGB40-32A 4.1
5.9
7.8		 1.14
1.64
2.17		 29
28
26.3		 34
39
39		 2900 1.5 2.3 45
ISGB40-32B 3.8
5.5
7.2		 1.06
1.53
2.00		 25.5
24
22.5		 34
38
37		 2900 1.1 2.3 40
ISGB40-50 4.4
6.3
8.3		 1.22
1.75
2.31		 51
50
48		 26
33
32		 2900 4.0 2.3 75
ISGB40-50A 4.1
5.9
7.8		 1.14
1.64
2.17		 45
44
42		 20
31
30		 2900 3.0 2.3 65
ISGB40-50B 3.7
5.3
7.0		 1.03
1.47
1.94		 38
36
34.5		 29 2900 2.2 2.3 55
ISGB40-80 4.4
6.3
8.3		 1.22
1.75
2.31		 82
80
74		 24
28
28		 2900 7.5 2.3 110
ISGB40-80A 4.1
5.9
7.8		 1.14
1.64
2.17		 72
70
65		 24
28
27		 2900 5.5 2.3 105
ISGB40-80B 3.8
5.5
7.2		 1.06
1.53
2.00		 61.5
60
56		 23
27
26		 2900 5.5 2.3 80
ISGB40-12.5(I) 8.8
12.5
16.3		 2.44
3.47
4.53		 13.2
12.5
11.3		 55
62
60		 2900 1.1 2.3 35
ISGB40-12.5(I)A 8
11
14.5		 2.22
3.06
4.03		 10.6
10
9		 60 2900 0.75 2.3 32
ISGB40-20(I) 8.8
12.5
16.3		 2.44
3.47
4.53		 21.5
20
57		 49
58
57		 2900 1.5 2.3 40
ISGB40-20(I)A 8
11
14.5		 2.22
3.05
4.03		 17
16
14		 57 2900 1.1 2.3 35
ISGB40-32(I) 8.8
12.5
16.3		 2.44
3.47
4.53		 33
32
30		 45
52
51		 2900 3.0 2.3 60
ISGB40-32(I)A 8.2
11.7
15.2		 2.28
3.25
4.22		 29
28
26		 44
51
50		 2900 2.2 2.3 50
ISGB40-32(I)B 7.3
10.4
13.5		 2.38
2.89
3.75		 26
24
20		 50 2900 1.5 2.3 45
ISGB40-50(I) 8.8
12.5
16.3		 2.44
3.47
4.53		 51.2
50
48		 38
46
46		 2900 5.5 2.3 90
ISGB40-50(I)A 8.3
11.7
15.3		 2.31
3.25
4.25		 45
44
42		 37
46
45		 2900 4.0 2.3 80
ISGB40-50(I)B 7.5
10.6
13.8		 2.08
2.94
3.83		 37
36
34		 40 2900 3.0 2.3 70
ISGB40-80(I) 8.8
12.5
16.3		 2.44
3.47
4.53		 81.2
80
77.5		 31
38
40		 2900 11.0 2.3 150
ISGB40-80(I)A 8.2
11.6
15.2		 2.28
3.22
4.22		 71
70
68		 38 2900 7.5 2.3 100
ISGB40-80(I)B 7.6
10.8
14		 2.11
3.0
3.89		 61.4
60
58		 37 2900 7.5 2.3 95
ISGB40-80(I)C 7.1
10.1
13.1		 1.97
2.87
3.64		 53.2
52
50.4		 36 2900 5.5 2.3 90
ISGB50-12.5 8.8
12.5
16.3		 2.44
3.47
4.53		 13.6
12.5
11.3		 55
62
60		 2900 1.1 2.3 40
ISGB50-12.5A 8
11
14.5		 2.22
3.05
4.03		 11
10
9		 60 2900 0.75 2.3 35
ISGB50-20 8.8
12.5
16.3		 2.44
3.47
4.53		 21.5
20
17.8		 49
58
57		 2900 1.5 2.3 45
ISGB50-20A 8
11
14.5		 2.22
3.05
4.03		 17
16
14		 57 2900 1.1 2.3 40
ISGB50-32 8.8
12.5
16.3		 2.44
3.47
4.53		 33
32
30		 45
52
51		 2900 3.0 2.3 60
ISGB50-32A 8.2
11.7
15.2		 2.28
3.25
4.22		 29
28
26		 44
51
50		 2900 2.2 2.3 50
ISGB50-32B 7.3
10.4
13.5		 2.38
2.89
3.75		 23
22
20.5		 50 2900 1.5 2.3 46
ISGB50-50 8.8
12.5
16.3		 2.44
3.47
4.53		 52
50
48		 38
46
46		 2900 5.5 2.3 105
ISGB50-50A 8.3
11.7
15.3		 2.31
3.25
4.25		 45.8
44
42		 37
45
45		 2900 4.0 2.3 85
ISGB50-50B 7.5
10.6
13.8		 2.08
2.94
3.83		 40
38
35		 44 2900 3.0 2.3 70
ISGB50-80 8.8
12.5
16.3		 2.44
3.47
4.53		 82
80
77.5		 29
38
40		 2900 11.0 2.3 160
ISGB50-80A 8.2
11.6
15.2		 2.28
3.22
4.22		 71.5
70
68		 29
38
41		 2900 7.5 2.3 120
ISGB50-80B 7.6
10.8
14		 2.11
3.0
3.89		 61.5
60
58		 27.5
37
40		 2900 7.5 2.3 115
ISGB50-80C 7.1
10.0
13.1		 1.97
2.78
3.64		 53.2
52
50.4		 27
36
39		 2900 5.5 2.3 110
ISGB50-12.5(I) 17.5
25
32.5		 4.86
6.97
9.03		 13.7
12.5
10.5		 67
69
69		 2900 1.5 2.5 45
ISGB50-12.5(I)A 15.6
22.3
29		 4.3
6.19
8.1		 11
10
8.4		 65
67
68		 2900 1.1 2.5 40
ISGB50-20(I) 17.5
25
32.5		 4.86
6.94
9.03		 21.5
20
18		 60
68
67		 2900 3.0 2.5 60
ISGB50-20(I)A 15.6
22.3
29		 4.33
6.19
8.1		 17.5
16
13.6		 58
66
65		 2900 2.2 2.5 50
ISGB50-32(I) 17.5
25
32.5		 4.86
6.94
9.03		 34.4
32
27.5		 55
63
60		 2900 4.0 2.5 75
ISGB50-32(I)A 16.4
23.4
30.4		 4.56
6.5
8.44		 30
28
24		 54
62
59		 2900 4.0 2.5 75
ISGB50-32(I)B 15.0
21.6
28		 4.17
6.0
7.78		 26
24
20.6		 61 2900 3.0 2.5 65
ISGB50-50(I) 17.5
25
32.5		 4.86
6.94
9.03		 52.7
50
45.5		 49
58
59		 2900 7.5 2.5 110
ISGB50-50(I)A 16.4
23.5
30.5		 4.56
6.53
8.47		 46.4
44
40		 48
57
58		 2900 7.5 2.5 110
ISGB50-50(I)B 15.2
21.8
28.3		 4.22
6.06
7.86		 40.5
38
34.5		 55 2900 5.5 2.5 100
ISGB50-80(I) 17.5
25
32.5		 4.86
6.94
9.03		 82
80
76.5		 39
50
52		 2900 15.0 2.5 175
ISGB50-80(I)A 16.4
23.4
30.5		 4.56
6.5
8.47		 71.5
70
67		 39
51
52		 2900 11.0 2.5 165
ISGB50-80(I)B 15
21.6
28		 4.17
6.0
7.78		 61
60
58		 38
50
54		 2900 11.0 2.5 165
ISGB50-125(I) 17.3
25
32.5		 4.6
6.94
9.03		 128
125
122		 31
40
44		 2900 30.0 2.5 310
ISGB50-125(I)A 16.6
23.7
31		 4.61
6.58
8.6		 115
113
110		 30
40
44		 2900 22.0 2.5 250
ISGB50-125(I)B 15.7
22.5
29.2		 4.36
6.25
8.0		 103
101
98		 39 2900 18.5 2.5 215
ISGB50-125(I)C 14.4
20.6
26.8		 4.0
5.72
7.44		 86
85
83		 38 2900 15.0 2.5 195
ISGB65-12.5 17.5
25
32.5		 4.86
6.94
9.03		 13.7
12.5
10.5		 67
69
69		 2900 1.5 2.5 45
ISGB65-12.5A 15.6
22.3
29		 4.3
6.19
8.1		 11
10
8.4		 65
67
68		 2900 1.1 2.5 40
ISGB65-20 17.5
25
32.5		 4.86
6.94
9.03		 22
20
18		 60
68
67		 2900 3.0 2.5 60
ISGB65-20A 15.6
22.3
29		 4.33
6.19
8.1		 17.5
16
14.4		 58
66
65		 2900 2.2 2.5 50
ISGB65-32 17.5
25
32.5		 4.86
6.94
9.03		 34.4
32
27.5		 54
63
60		 2900 4.0 2.5 75
ISGB65-32A 16.4
23.4
30.1		 4.56
6.5
8.44		 30
28
24.5		 54
62
59		 2900 4.0 2.5 75
ISGB65-32B 15
21.6
28		 4.17
6.0
7.78		 26
24
21		 51
61
60		 2900 3.0 2.5 65
ISGB65-50 17.5
25
32.5		 4.86
6.94
9.03		 52.7
50
45.5		 49
58
59		 2900 7.5 2.5 110
ISGB65-50A 16.4
23.5
30.5		 4.56
6.53
8.47		 46.4
44
40		 48
57
58		 2900 7.5 2.5 110
ISGB65-50B 15.2
21.8
28.3		 4.22
6.06
7.86		 40.5
38
34		 55 2900 5.5 2.5 100
ISGB65-80 17.5
25
32.5		 4.86
6.94
9.03		 82
80
76.5		 39
50
52		 2900 15.0 2.5 185
ISGB65-80A 16.4
23.4
30.5		 4.56
6.5
8.47		 71.5
70
67		 39
50
52		 2900 11.0 2.5 170
ISGB65-80B 15
21.6
28		 4.17
6.0
7.78		 61
60
58		 38
49
54		 2900 11.0 2.5 170
ISGB65-125 17.5
25
32.5		 4.86
6.94
9.03		 127
125
122		 32
40
44		 2900 30.0 2.5 320
ISGB65-125A 16.6
23.7
31		 4.61
6.58
8.6		 115
113
110		 32
40
44		 2900 22.0 2.5 260
ISGB65-125B 15.7
22.5
29.2		 4.36
6.25
8.0		 103
101
98		 39 2900 18.5 2.5 225
ISGB65-125C 14.4
20.6
26.8		 4.0
5.72
7.44		 86
85
83		 38 2900 15.0 2.5 210
ISGB65-12.5(I) 35
50
65		 9.72
13.9
18.1		 13.8
12.5
10		 67
73
70		 2900 3.0 3.0 65
ISGB65-12.5(I)A 31.3
44.7
58		 8.7
12.4
16.1		 11
10
8		 66
72
69		 2900 2.2 3.0 55
ISGB65-20(I) 35
50
65		 9.72
13.9
18.1		 22
20
17		 67
72.5
70		 2900 5.5 3.0 100
ISGB65-20(I)A 31.3
45
58		 8.7
12.5
16.1		 17.5
16
13.6		 60
71
69		 2900 4.0 3.0 80
ISGB65-32(I) 35
50
65		 9.72
13.9
18.1		 35
32
28		 63
71
70		 2900 7.5 3.0 105
ISGB65-32(I)A 32.7
46.7
61		 9.1
13.0
16.9		 30.6
28
25		 62
70
69		 2900 7.5 3.0 105
ISGB65-32(I)B 30.0
43.3
56.3		 8.4
12.0
15.6		 26
24
21		 69 2900 5.5 3.0 95
ISGB65-50(I) 35
50
65		 9.72
13.9
18.1		 53.5
50
46		 55
67
68		 2900 15.0 3.0 180
ISGB65-50(I)A 32.8
47
61		 9.1
13.1
16.9		 47
44
40		 54
66
67		 2900 11.0 3.0 165
ISGB65-50(I)B 30.5
43.5
56.6		 8.5
12.1
15.7		 40.6
38
33.4		 65 2900 7.5 3.0 115
ISGB65-80(I) 35
50
65		 9.7
13.9
18.1		 83
80
72		 52
59
60		 2900 22.0 3.0 235
ISGB65-80(I)A 32.5
46.7
61		 9.0
13.0
16.9		 73
70
63		 52
59
60		 2900 18.5 3.0 205
ISGB65-80(I)B 30
43.3
56		 8.3
12.0
15.6		 63
60
54		 58 2900 15.0 3.0 180
ISGB65-125(I) 35
50
65		 9.72
13.9
18.1		 128
125
121		 44
54
57		 2900 37.0 3.0 350
ISGB65-125(I)A 32.5
46.5
60.5		 9.0
12.9
16.8		 116
113
110		 43
54
57		 2900 30.0 3.0 335
ISGB65-125(I)B 31
44.5
58		 8.6
12.4
16.1		 103
101
97		 40
53
56		 2900 30.0 3.0 335
ISGB65-125(I)C 29
41
53.6		 8.1
11.4
14.9		 87
85
83		 39
51
55		 2900 22.0 3.0 270
ISGB80-12.5 35
50
65		 9.72
13.9
18.1		 13.8
12.5
10		 67
73
70		 2900 3.0 3.0 65
ISGB80-12.5A 31.3
44.7
58		 8.7
12.5
16.1		 11
10
8		 66
72
69		 2900 2.2 3.0 60
ISGB80-20 35
50
65		 9.72
13.9
18.1		 22
20
17		 67
72.5
70		 2900 5.5 3.0 100
ISGB80-20A 31.3
45
58		 8.7
12.5
16.1		 17.5
16
13.6		 66
71
69		 2900 4.0 3.0 80
ISGB80-32 35
50
65		 9.72
13.9
18.1		 35
32
28		 63
71
70		 2900 7.5 3.0 105
ISGB80-32A 32.7
46.7
61		 9.1
13.0
16.9		 30.6
28
25		 62
70
69		 2900 7.5 3.0 105
ISGB80-32B 30.3
43.3
56.3		 8.4
12.0
15.6		 27
24
20		 69 2900 5.5 3.0 100
ISGB80-50 35
50
65		 9.72
13.9
18.1		 53.3
50
46		 55
67
68		 2900 15.0 3.0 175
ISGB80-50A 328
47
61		 9.1
13.1
16.9		 47
44
40		 54
66
67		 2900 11.0 3.0 170
ISGB80-50B 30.5
43.5
56.6		 8.5
12.1
15.7		 40.6
38
33.4		 53
65
67		 2900 7.5 3.0 120
ISGB80-80 35
50
65		 9.72
13.9
18.1		 83
80
72		 52
59
60		 2900 22.0 3.0 240
ISGB80-80A 32.5
46.7
61		 9.0
13.0
16.9		 73
70
64		 52
59
60		 2900 18.5 3.0 210
ISGB80-80B 30
43.3
56		 8.3
12.0
15.6		 63
60
54		 58 2900 15.0 3.0 190
ISGB80-125 35
50
65		 9.72
13.9
18.1		 128
125
122		 43
54
57		 2900 37.0 3.0 360
ISGB80-125A 32.5
46.5
60.5		 9
12.9
16.8		 116
113
110		 42
53
56		 2900 30.0 3.0 345
ISGB80-125B 31
44.5
58		 8.6
12.4
16.1		 103
101
97		 53 2900 30.0 3.0 340
ISGB80-125C 29
41
53.6		 8.1
11.4
14.9		 98
85
83		 51 2900 22.0 3.0 275
ISGB80-12.5(I) 70
100
130		 194
27.8
36.1		 13.6
12.5
11		 66
76
75		 2900 5.5 4.5 110
ISGB80-12.5(I)A 62.6
89
116		 17.4
24.7
32.2		 11
10
8.8		 64
74
74		 2900 4.0 4.5 85
ISGB80-20(I) 70
100
130		 19.4
27.8
36.1		 23.5
20
14		 70
76
72		 2900 11.0 4.5 165
ISGB80-20(I)A 62.6
89
116		 17.4
24.7
32.2		 19
16
11		 68
74
65		 2900 7.5 4.5 130
ISGB80-32(I) 70
100
130		 19.4
27.8
36.1		 36.5
32
24		 70
76
65		 2900 15.0 4.5 185
ISGB80-32(I)A 65.4
93.5
131.6		 18.2
26.0
33.8		 32
28
21		 68
74
67		 2900 11.0 4.5 175
ISGB80-32(I)B 60.6
86.6
112.5		 16.8
24.1
31.3		 27
24
18		 72 2900 11.0 4.5 175
ISGB80-50(I) 70
100
130		 19.4
27.8
36.1		 54
50
42		 65
74
73		 2900 22.0 4.0 250
ISGB80-50(I)A 65.4
93.5
121.6		 18.2
26.4
33.8		 47.5
44
39		 64
73
72		 2900 18.5 4.0 220
ISGB80-50(I)B 61
87
113		 16.9
24.2
31.4		 41
38
32		 71 2900 15.0 4.0 200
ISGB80-80(I) 70
100
130		 19.4
27.8
36.1		 87
80
68		 62
69
68		 2900 37.0 4.0 330
ISGB80-80(I)A 65.4
93.5
121.6		 18.2
26.0
33.8		 76
70
59.5		 61
68
67		 2900 30.0 4.0 315
ISGB80-80(I)B 61
87
113		 16.9
24.2
31.4		 65
60
51		 66 2900 30.0 4.0 315
ISGB80-125(I) 70
100
130		 19.4
27.8
36.1		 132
125
114		 55
66
67		 2900 75.0 4.0 675
ISGB80-125(I)A 66.5
95
123.6		 18.5
26.4
34.3		 119
113
104		 55
66
67		 2900 55.0 4.0 535
ISGB80-125(I)B 63
90
117		 17.5
25
32.5		 106.6
101
92		 65 2900 45.0 4.0 425
ISGB80-125(I)C 58
82
107		 16.1
22.8
29.7		 90
85
76		 63 2900 37.0 4.0 370
ISGB100-12.5 70
100
130		 19.4
27.8
36.1		 13.6
12.5
11		 66
76
75		 2900 5.5 4.5 115
ISGB100-12.5A 62.6
89
116		 17.4
24.7
32.2		 11
10
8.8		 64
74
74		 2900 4.0 4.5 90
ISGB100-20 70
100
130		 19.4
27.8
36.1		 23.5
20
14		 70
76
65		 2900 11.0 4.5 170
ISGB100-20A 62.6
89
116		 17.4
24.7
32.2		 19
16
11		 68
74
63		 2900 7.5 4.5 120
ISGB100-32 70
100
130		 19.4
27.8
36.1		 36.5
32
24		 70
76
65		 2900 15.0 4.5 200
ISGB100-32A 65.4
93.5
121.6		 18.2
26.0
33.8		 32
28
21		 68
74
67		 2900 11.0 4.5 185
ISGB100-32B 60.6
86.6
112.5		 16.8
24.1
31.3		 27
24
18		 72 2900 11.0 4.5 180
ISGB100-50 70
100
130		 19.4
27.8
36.1		 54
50
42		 65
74
73		 2900 22.0 4.0 245
ISGB100-50A 65.4
93.5
121.6		 18.2
26.0
33.8		 47.5
44
37		 64
73
72		 2900 18.5 4.0 215
ISGB100-50B 61
87
113		 16.9
24.2
31.4		 41
38
34		 71 2900 15.0 4.0 195
ISGB100-80 70
100
130		 19.4
27.8
36.1		 87
80
68		 62
69
68		 2900 37.0 4.0 345
ISGB100-80A 65.4
93.5
121.6		 18.2
26.0
33.8		 76
70
59.5		 61
68
67		 2900 30.0 4.0 330
ISGB100-80B 61
87
113		 16.9
24.2
31.4		 65
60
51		 67 2900 30.0 4.0 330
ISGB100-125 70
100
130		 19.4
27.8
36.1		 132
125
114		 55
66
67		 2900 75.0 4.0 685
ISGB100-125A 66.5
95
123.6		 18.5
26.4
34.3		 119
113
104		 55
66
67		 2900 55.0 4.0 550
ISGB100-125B 63
90
117		 17.5
25.0
32.5		 106.6
101
92		 65 2900 45.0 4.0 440
ISGB100-125C 58
82
107		 16.1
22.8
29.7		 90
85
76		 63 2900 37.0 4.0 385
ISGB125-12.5 96
160
192		 26.7
44.4
53.3		 13
12.5
12		 78
82
84		 2900 11.0 4.0 180
ISGB125-12.5A 86
143
172		 23.9
39.7
47.8		 10.4
10
9.6		 77 2900 7.5 4.0 130
ISGB125-20 96
160
192		 26.7
44.4
53.3		 22.6
20
17		 76
80
78		 2900 15.0 4.0 225
ISGB125-20A 86
143
172		 23.9
39.7
47.8		 18
16
13.6		 73
77
75		 2900 11.0 4.0 210
ISGB125-32 96
160
192		 26.7
44.4
53.3		 36
32
28		 78 2900 22.0 4.0 265
ISGB125-32A 90
150
180		 25
41.7
50		 31.5
28
24.5		 76 2900 18.5 4.0 230
ISGB125-32B 83
138
166		 21.7
38.3
46.1		 27
24
21		 73 2900 15.0 4.0 215
ISGB125-50 96
160
192		 26.7
44.4
53.3		 55
50
46		 69
79
78		 2900 37.0 5.0 400
ISGB125-50A 90
150
180		 25
41.7
50		 48.4
44
40.5		 64
74
73		 2900 30.0 5.0 380
ISGB125-50B 83
138
166		 21.8
38.3
46.1		 41.3
37.5
34.5		 72 2900 22.0 5.0 325
ISGB125-80 96
160
192		 26.7
44.4
53.3		 87
80
73		 65
77
74		 2900 55.0 4.5 580
ISGB125-80A 90
150
180		 25
41.7
50		 76
70
64		 74 2900 45.0 4.5 495
ISGB125-80B 83
138
166		 21.7
38.3
46.1		 65
60
55		 73 2900 37.0 4.5 430
ISGB125-125 96
160
192		 26.7
44.7
53.3		 133
125
119		 70
72
68		 2900 90.0 4.5 800
ISGB125-125A 90
150
180		 25
41.7
50		 117
110
104.6		 65
70
71		 2900 75.0 4.5 715
ISGB125-125B 86
143
172		 23.8
39.7
47.8		 106.4
100
95.2		 65
69
66		 2900 75.0 4.5 710
ISGB125-125C 80.5
134
161		 22.4
37.2
44.7		 96
88
86		 68 2900 55.0 4.5 590
ISGB125-32(I) 120
200
240		 33.3
55.6
66.7		 35
32
28		 64
76
75		 2900 30.0 4.5 325
ISGB125-32(I)A 112
187
224		 31.1
51.9
62.2		 31.5
28
24		 63
75
75		 2900 22.0 4.5 295
ISGB125-50(I) 120
200
240		 33.3
55.6
66.7		 55
50
46		 63
74
73		 2900 45.0 4.5 430
ISGB125-50(I)A 112
187
224		 31.1
51.9
62.2		 48.4
44
40		 62
73
73		 2900 37.0 4.5 420
ISGB125-50(I)B 104
173
208		 28.9
48.1
57.8		 41
37
34.5		 61
72
73		 2900 30.0 4.5 410
ISGB125-80(I) 120
200
240		 33.3
55.6
66.7		 87
80
72		 65
76
74		 2900 75.0 4.5 685
ISGB125-80(I)A 112
187
224		 31.1
51.9
62.2		 76
70
63		 64
75
73		 2900 55.0 4.5 545
ISGB125-80(I)B 104
173
208		 28.9
48.1
57.8		 65
60
54		 63
74
72		 2900 45.0 4.5 460
ISGB125-125(I) 120
200
240		 33.3
55.6
66.7		 133
125
120		 58
73
75		 2900 110.0 4.5 950
ISGB125-125(I)A 112
187
224		 31.1
51.9
62.2		 116
110
105		 57
72
74		 2900 90.0 4.5 785
ISGB125-125(I)B 104
173
208		 28.9
48.1
57.8		 100
95
91		 55
70
72		 2900 75.0 4.5 750
ISGB150-12.5 112
160
208		 31.1
44.4
57.8		 13.5
12.5
10		 60
72
66		 1450 11.0 3.5 200
ISGB150-12.5A 98
140
182		 27.2
39
50.6		 11
10
8.5		 68
70
71		 1450 7.5 3.5 180
ISGB150-20 112
160
208		 31.1
44.4
57.8		 23.5
20
14		 66
71
66		 1450 15.0 3.5 250
ISGB150-20A 98
140
182		 27.2
39
50.6		 19
17
11		 65
70
66		 1450 11.0 3.5 230
ISGB150-20B 84
120
156		 23.3
33.3
43.3		 15.5
14
10		 62
70
68		 1450 7.5 3.5 200
ISGB150-32 112
160
208		 31.1
44.4
57.8		 33
32
28		 62
70
80		 1450 22.0 3.5 280
ISGB150-32A 98
140
182		 27.2
39
50.6		 29
28
26.6		 600
71
80		 1450 18.5 3.5 270
ISGB150-32B 84
120
156		 23.3
33.3
43.3		 25
24
22.5		 66
71
70		 1450 15.0 3.5 250
ISGB150-50 112
160
208		 31.1
44.4
57.8		 52
50
42		 60
72
80		 1450 37.0 3.5 515
ISGB150-50A 98
140
182		 27.2
39
50.5		 46
44
39		 60
70
80		 1450 30.0 3.5 500
ISGB150-50B 84
120
156		 23.3
33.3
43.3		 41
38
30		 66
70
73		 1450 22.0 3.5 480
ISGB150-80 112
160
208		 31.1
44.4
57.8		 83
80
75		 67
72
69		 1450 55.0 3.5 900
ISGB150-80A 98
140
182		 27.2
39
50.6		 73
70
66		 65
70
67		 1450 45.0 3.5 765
ISGB150-80B 84
120
150		 23.3
33.3
43.3		 65
60
56		 62
67
65		 1450 37.0 3.5 660
ISGB150-80 120
200
240		 33.3
55.6
66.7		 87
80
72		 65
76
74		 2900 75.0 4.2 710
ISGB150-80A 112
187
224		 31.1
51.9
62.2		 76
70
63		 64
75
73		 2900 55.0 4.2 560
ISGB150-80B 104
173
208		 28.9
48.1
57.8		 65
60
54		 63
74
72		 2900 45.0 4.2 465
ISGB150-125 120
200
240		 33.3
55.6
66.7		 133
125
120		 58
73
75		 2900 110.0 4.5 980
ISGB150-125A 112
187
224		 31.1
51.9
62.2		 116
110
105		 57
72
74		 2900 90.0 4.5 805
ISGB150-125B 104
173
208		 28.9
48.1
57.8		 100
95
91		 55
70
72		 2900 75.0 4.5 725
ISGB150-12.5(I) 140
200
260		 38.9
55.6
72.2		 13.8
12.5
10.6		 68
78
78		 1450 15.0 3.0 265
ISGB150-12.5(I)A 125
179
233		 34.7
49.7
64.6		 11
10
8.5		 66
76
76		 1450 11.0 3.0 245
ISGB150-20(I) 140
200
260		 38.9
55.6
72.2		 21.8
20
17		 73
79
77		 1450 18.5 3.0 300
ISGB150-20(I)A 129
184
240		 35.8
51.2
66.7		 18.5
17
14.4		 72
78
76		 1450 15.0 3.0 265
ISGB150-20(I)B 117
167
217.5		 32.5
46.4
60.4		 15.2
14
12		 71
76
74		 1450 11.0 3.0 245
ISGB150-32(I) 140
200
260		 38.9
55.6
72.2		 33.8
32
28		 70
78
73		 1450 30.0 3.5 410
ISGB150-32(I)A 131
187
243		 36.4
51.9
67.5		 29.5
28
24.5		 9
77
77		 1450 22.0 3.5 335
ISGB150-32(I)B 121
173
225		 33.6
48.1
62.5		 25
24
21		 69
76
74		 1450 18.5 3.5 310
ISGB150-50(I) 140
200
260		 38.9
55.6
72.2		 53
50
44		 68
75
71		 1450 45.0 3.5 500
ISGB150-50(I)A 131
187
243		 36.4
51.9
67.5		 46.6
44
38.3		 67
74
70		 1450 37.0 3.5 460
ISGB150-50(I)B 122
174
226.5		 33.9
48.3
62.9		 40.5
38
33		 66
73
69		 1450 30.0 3.5 435
ISGB150-50(I)C 112
160
208		 31.1
44.4
57.8		 34
32
28		 71 1450 22.0 3.5 370
ISGB150-80(I) 140
200
260		 38.9
55.6
72.2		 84
80
75		 62
69
67		 1450 75.0 3.5 1050
ISGB150-80(I)A 131
187
243		 36.4
51.9
67.5		 73
70.5
66		 61
68
66		 1450 75.0 3.5 900
ISGB150-80(I)B 122
174
226.5		 33.9
48.3
62.9		 65
62
58		 60
66
64		 1450 55.0 3.5 780
ISGB150-80(I)C 112
160
208		 31.1
44.4
57.8		 56.5
54.5
51		 58
64
62		 1450 45.0 3.5 650
ISGB200-12.5 140
200
260		 38.9
55.6
72.2		 13.8
12.5
10.8		 68
78
78		 1450 15.0 3.0 270
ISGB200-12.5A 125
179
233		 34.7
49.7
64.6		 11
10
8.5		 66
76
76		 1450 11.0 3.0 245
ISGB200-20 140
200
260		 38.9
55.6
72.2		 21.8
20
17		 73
79
77		 1450 18.5 3.0 310
ISGB200-20A 129
184
240		 35.8
51.2
66.7		 18.5
17
14.4		 72
78
76		 1450 15.0 3.0 365
ISGB200-20B 117
167
217.5		 32.5
46.4
60.4		 15.2
14
12		 71
76
74		 1450 11.0 3.0 245
ISGB200-32 140
200
260		 38.9
55.6
72.2		 33.8
32
28		 70
78
78		 1450 30.0 3.5 420
ISGB200-32A 131
187
243		 36.4
51.9
67.5		 29.5
27
24.5		 69
77
78		 1450 22.0 3.5 350
ISGB200-32B 121
173
225		 33.6
48.1
62.5		 25
24
21		 69
76
73		 1450 18.5 3.5 320
ISGB200-50 140
200
260		 38.9
55.6
72.2		 53
50
44		 68
75
71		 1450 45.0 3.5 495
ISGB200-50A 131
187
243		 364
51.9
67.5		 46.6
44
38.3		 67
74
70		 1450 37.0 3.5 460
ISGB200-50B 122
174
226.5		 33.9
48.3
62.9		 40.5
38
33		 73 1450 30.0 3.5 445
ISGB200-50C 112
160
208		 31.1
44.4
57.8		 34
32
28		 71 1450 22.0 3.5 380
ISGB200-12.5(I) 280
400
520		 77.8
111.1
144		 13.4
12.5
10.5		 70
80
79		 1450 22.0 4.0 385
ISGB200-12.5(I)A 250
358
465		 69.4
99.4
129.2		 10.7
10
8.5		 68
78
77		 1450 18.5 4.0 470
ISGB200-20(I) 280
400
520		 77.8
111.1
144		 22.2
20
14		 75
80
72		 1450 30.0 4.0 480
ISGB200-20(I)A 250
358
465		 69.4
99.4
129.2		 19
17
13		 73
78
70		 1450 22.0 4.0 430
ISGB200-20(I)B 226
322
419		 62.8
89.4
116.4		 15.5
14
10		 70
75
73		 1450 18.5 4.0 390
ISGB200-32(I) 280
400
520		 77.8
111.1
144		 36
32
26		 73
80
75		 1450 55.0 4.0 680
ISGB200-32(I)A 262
374
486		 72.8
103.9
135		 31.5
28
23		 72
79
74		 1450 45.0 4.0 560
ISGB200-32(I)B 242
346
450		 67.2
96.1
125		 27.5
24
18.5		 78 1450 37.0 4.0 535
ISGB200-50(I) 280
400
520		 77.8
111.1
144		 54.5
50
39		 75
81
77		 1450 75.0 4.0 835
ISGB200-50(I)A 262
352
486		 72.8
103.9
135		 48
44
35		 73
80
75		 1450 75.0 4.0 835
ISGB200-50(I)B 242
346
450		 67.2
96.1
125		 42
38
29.6		 72
78
74		 1450 55.0 4.0 700
ISGB200-50(I)C 224
320
416		 62.2
88.9
115.6		 34.9
32
25		 70
76
72		 1450 45.0 4.0 585
ISGB200-80(I) 280
400
520		 77.8
111.1
144		 87
80
72		 73
80
77		 1450 132.0 5.0 1565
ISGB200-80(I)A 262
374
486		 72.8
103.9
135		 76
70
63		 72
79
76		 1450 110.0 5.0 1415
ISGB200-80(I)B 242
346
450		 67.2
96.1
125		 65
60
54		 71
78
75		 1450 90.0 5.0 1290
ISGB200-80(I)C 224
320
416		 62.2
88.9
115.6		 62
56
48		 70
76
74		 1450 75.0 4.0 1050
ISGB200-125(I) 280
400
520		 77.8
111.1
144.4		 135
125
104		 79 1450 200.0 4.0 1680
ISGB200-125(I)A 256
352
448		 71.1
97.8
124		 120
112
88		 78 1450 200.0 4.0 1680
ISGB200-125(I)B 224
320
416		 62.2
88.9
115.6		 104
96
72		 77 1450 132.0 4.0 1450
ISGB250-12.5 400
650
670		 111.1
152.8
186.1		 13.5
12.5
11		 78
82
78		 1450 30.0 4.0 550
ISGB250-12.5A 368
506
607		 102.2
140.6
168.7		 11.6
10.8
9.5		 74
80
76		 1450 22.0 5.0 500
ISGB250-20 400
550
670		 111.1
152.8
186.1		 22.5
20
16		 78
82
84		 1450 45.0 5.0 620
ISGB250-20A 368
506
607		 102.2
140.6
168.7		 19.5
17
14.6		 80 1450 37.0 5.0 550
ISGB250-32 400
550
670		 111.1
152.8
186.1		 36
32
26		 77
80
81		 1450 75.0 5.0 915
ISGB250-32A 368
506
607		 102.2
140.6
168.7		 31.5
28
23		 78 1450 55.0 5.0 840
ISGB250-32B 339
466
559		 94
129.3
155.2		 26.5
25
20		 76 1450 45.0 5.0 695
ISGB250-50 400
550
670		 111.1
152.8
186.1		 54.5
50
39		 69
76
72		 1450 110.0 5.0 1557
ISGB250-50A 368
506
607		 102.2
140.6
168.7		 48
44
35.5		 68
74
70		 1450 90.0 5.0 1055
ISGB250-50B 339
466
559		 94
129.3
155.2		 43
39.5
32.5		 66
72
68		 1450 75.0 5.0 910
ISGB250-50C 311
428
514		 86.5
119
142.8		 38
35
28		 63
69
65		 1450 75.0 5.0 910
ISGB250-70 400
520
670		 111.1
152.8
186.1		 76
70
63		 75
76
78		 1450 160.0 5.0 1545
ISGB250-70A 368
506
607		 102.2
140.6
168.7		 65
60
54		 74
75
77		 1450 132.0 5.0 1355
ISGB250-70B 339
466
559		 94
129.3
155.2		 55
50
42		 73
74
74		 1450 90.0 5.0 1055
ISGB250-70C 311
428
514		 86.5
119
142.8		 49.5
44
38		 71
72
73		 1450 75.0 5.0 965
ISGB250-80 500
550
670		 111.1
152.8
186.1		 84
80
70		 73
77
75		 1450 200.0 5.0 1750
ISGB250-80A 368
506
670		 102.2
140.6
168.7		 75
74
62.5		 72
75
74		 1450 160.0 5.0 1560
ISGB250-80B 339
466
559		 94
129.3
155.2		 66.5
63.5
55.5		 70
73
72		 1450 132.0 5.0 1420
ISGB250-80C 311
428
514		 86.5
119
142.8		 58
55
48.5		 69
71
70		 1450 110.0 5.0 1350
ISGB300-12.5 500
720
860		 138.9
200
238.9		 13.5
12.5
10.5		 78
83
78		 1450 37.0 5.0 985
ISGB300-12.5A 460
662
791		 127.8
184
219.8		 12
11
9.3		 77
82
77		 1450 30.0 5.0 925
ISGB3300-18 480
720
900		 133.3
200
250		 20
18
15.5		 77
81
74		 1450 55.0 5.0 1135
ISGB300-18A 438
607
821		 121.7
182.5
228.1		 16.5
15
13		 75
79
72		 1450 45.0 5.0 1040
ISGB300-18B 400
600
750		 111.1
167.0
208.3		 14
12.5
11		 73
77
70		 1450 37.0 5.0 900
ISGB300-20 500
720
900		 138.9
200
250		 23
20
16		 80
83
84		 1450 55.0 5.0 900
ISGB300-20A 460
662
791		 127.8
184
219.8		 20.2
17.5
14.2		 81 1450 45.0 5.0 785
ISGB300-28 480
720
900		 133.3
200
250		 31
28
25		 77
81
77		 1450 75.0 5.0 1350
ISGB300-28A 444
666
833		 123.3
185
231.4		 26.5
24
21.5		 76
80
76		 1450 75.0 5.0 1350
ISGB300-28B 415
623
779		 115.3
173.1
216.4		 23
21
18.5		 79 1450 55.0 5.0 1170
ISGB300-32 500
720
900		 138.9
200
250		 36
32
26		 79
82.5
84		 1450 90.0 5.0 1350
ISGB300-32A 460
662
791		 127.8
184
219.8		 30.5
28
23.5		 74
80
74		 1450 75.0 5.0 1250
ISGB300-32B 423
609
728		 117.6
169.3
202.2		 25.5
23.5
20		 72
78
73		 1450 55.0 5.0 1080
ISGB300-44 480
720
900		 133.3
200
250		 48
44
34		 76
84
82		 1450 132.0 5.0 1900
ISGB300-44A 444
666
833		 123.3
185
231.4		 41.4
38
30		 80 1450 110.0 5.0 1700
ISGB300-44B 409
614
767		 113.6
170.6
213.1		 35
32
25		 78 1450 90.0 5.0 1550
ISGB300-50 500
720
900		 138.9
200
250		 54.5
50
42		 75
80
78		 1450 132.0 5.5 1725
ISGB300-50A 460
662
791		 127.8
184
219.8		 47
44
36.5		 74
79
77		 1450 110.0 5.5 1520
ISGB300-50B 423
609
728		 117.6
169.3
202.2		 41
38
32		 72
77
75		 1450 90.0 5.5 1400
ISGB300-50C 389
561
670		 108.2
155.7
186		 35.5
33
27.5		 69
74
72		 1450 75.0 5.5 1250
ISGB300-65 500
720
900		 138.9
200
250		 71
65
58		 75
81
82		 1450 200.0 5.5 2150
ISGB300-65A 460
662
791		 127.8
184
219.8		 60
55
49		 74
80
81		 1450 160.0 5.5 1730
ISGB300-65B 423
609
728		 117.6
169.3
202.2		 49
45
35		 73
79
80		 1450 110.0 5.5 1630
ISGB300-65C 389
561
670		 108.2
155.7
186		 42
38
30		 72
78
79		 1450 90.0 5.5 1500
ISGB300-80 500
720
900		 138.9
200
250		 84
80
72		 74
80
75		 1450 250.0 5.5 2280
ISGB300-80A 460
662
791		 127.8
184
219.8		 74
80.5
63.5		 73
79
74		 1450 200.0 5.5 2150
ISGB300-80B 423
609
728		 117.6
169.3
202.2		 65
62
56		 71
77
72		 1450 160.0 5.5 1980
ISGB300-80C 389
561
670		 108.2
155.7
186		 57
54.5
49		 68
75
70		 1450 132.0 5.5 1850
ISGB350-12.5 718
1080
1345		 199.4
300
373.6		 15
12.5
11		 75
83
81		 970 55.0 5.5 1200
ISGB350-12.5A 663
995
1245		 184.2
276.4
345.8		 12
10
8.5		 72
81
79		 970 45.0 5.5 1020
ISGB350-20 718
1080
1345		 199.4
300
373.6		 23.5
20
18		 76
82
80		 970 90.0 5.5 1450
ISGB350-20A 663
995
1245		 184.2
376.4
345.8		 20
17
15		 74
80
78		 970 75.0 5.5 1320
ISGB350-20B 620
931
1165		 172.2
258.6
323.6		 17.5
15
13		 71
78
77		 970 55.0 5.5 115
ISGB350-32 718
1080
1345		 199.4
300
373.6		 36.4
32
28.5		 79
83
78		 1450 132.0 5.5 2150
ISGB350-32A 663
995
1245		 184.2
276.4
345.6		 30.5
27
25		 74
81
76		 1450 110.0 5.5 2000
ISGB350-32B 620
931
1165		 172.2
258.6
323.6		 26.5
24
21		 73
79
75		 1450 90.0 5.5 1850
ISGB350-40 718
1080
1345		 199.4
300
373.6		 44.6
40
34.6		 82 1450 160.0 5.5 1700
ISGB350-40A 642
965
120		 178.3
268.1
334.2		 35.7
32
27.7		 80 1450 132.0 5.5 1500
ISGB350-40B 600
900
1121		 166.7
250
311.4		 31.2
28.2
24.6		 78 1450 110.0 5.5 1300
ISGB350-50 718
1080
1345		 199.4
300
373.6		 54.7
50
44.2		 78
83
77		 1450 200.0 5.5 2300
ISGB350-50A 663
995
1245		 184.2
276.4
345.8		 48.3
44
36.8		 77
81
76		 1450 160.0 5.5 2100
ISGB350-50B 620
931
1165		 172.2
258.6
323.6		 42.5
38
32.3		 79 1450 132.0 5.5 1950
ISGB350-60 718
1080
1345		 199.4
300
373.6		 64.8
60
55		 82 1450 250.0 5.5 2500
ISGB350-60A 663
995
1245		 184.2
376.4
345.8		 59.2
54
48		 80 1450 200.0 5.5 2250
ISGB350-60B 620
931
1165		 172.2
258.6
323.6		 51.3
46.9
41.3		 78 1450 160.0 5.5 2100
ISGB350-12.5(I) 1000
1200
1450		 277.8
333.3
402.8		 13.5
12.5
10.5		 76
80
77		 970 55.0 6.0 1250
ISGB350-12.5(I)A 900
1080
1300		 250
300
361		 11.5
10.5
9		 76
80
76		 970 45.0 6.0 1150
ISGB350-20(I) 1000
1200
1450		 277.8
333.3
402.8		 23
20
16		 76
80
76		 970 90.0 6.0 1580
ISGB350-20(I)A 900
1080
1300		 250
300
361		 19
17
14		 73
78
74		 970 75.0 6.0 1350
ISGB350-32(I) 1000
1200
1450		 277.8
333.3
402.8		 36
32
26		 74
78
75		 1450 160.0 6.0 1870
ISGB350-32(I)A 900
1080
1300		 250
300
361		 31.5
28
23		 72
76
73		 1450 132.0 6.0 1720
ISGB350-32(I)B 745
985
1182		 207
273
328		 27
25
20		 71
75
72		 1450 110.0 6.0 1650
ISGB350-50(I) 1000
1200
1450		 277.8
333.3
402.8		 55
50
43		 70
74
72		 1450 250.0 6.0 2350
ISGB350-50(I)A 900
1080
1300		 250
300
361		 47.5
44
38		 68
72
70		 1450 200.0 6.0 2100
ISGB350-50(I)B 745
985
1182		 207
273
328		 42
38.5
34		 60
70
68		 1450 160.0 6.0 2000
